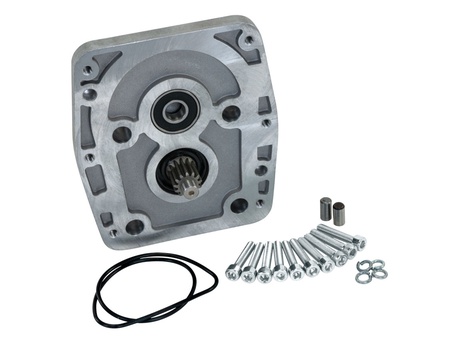

Clutch Housing Kit - PGD3200(X)
Complete Clutch Body assembly for a PGD3200, PGD3200X & PGD3200XPM Driver. Bearings are pressed in at factory for proper alignment, no assembly required.
M6x30 socket head cap screw 10 ea
4x w/washer housing to engine / 6x housing to upper body
6004-2RS bearing
42mm snap ring
20mm snap ring
6201-2RS bearing
Clutch housing
Clutch drum
Alignment pin pk 2
Gasket clutch to body
Oil seal
$179.00
Item: PGDMCHKIT
Shipping
Status
Status
Alternative Items
O-ring 76×2.65 Nitrile
O-ring 42.5×3.8 Viton pk 2
O-ring 44×5.3 Viton pk 2
O-ring 78×3.8 Viton
O-ring 92×2.65 Nitrile
Titan Ep 0 Grease, 4 oz
- Powered by 1.3 horsepower, Honda 4-stroke engine
- 3 1/4" barrel accepts posts up to 3 1/8" in diameter
- Includes 2 1/2" adapter for smaller posts
- Powerful and portable gas-powered post driver
- 1,850 bpm
- Customize with Handle Kits
- Weighs 45 pounds
- X Series - Commercial Duty Driver
- Self-Contained, Powerful and Portable Driver, 45 lbs
- Honda GX35 1.3 hp, 4 stroke engine
- Heavy Duty Threaded Barrel
- Special Designed Barrel to accommodate POST MASTER PLUS POST
- Comes with 2" Adapter Sleeve, Solid Industrial Grade Poly
( ½", ¾", 1", 1¾", 2¼" & 2½" also available ) - X Series lets you customize with Handle Kits
- Accommodates material up to 3⅛" diameter max
Hammer O-ring 42.5×3.8
Hammer
Damper washer
Damper guide O-rings 44×5.3 2 ea.
Damper guide ring
Damper cup
Anvil
Anvil O-ring 78×3.8
