Safe-Fence Installing Tensioners and Insulators - Complete Guide
Installing tensioners and insulators correctly is key to the long-term performance of your Safe-Fence electric fence. These components help maintain proper wire tension and ensure consistent electrical flow across your system.
With the fence height, number of strands, and strand spacing pre-determined, always install the tensioners first, followed by the insulators. This ensures you maintain consistent spacing and alignment during installation.
Placement Guidelines
The center of the top strand tensioner should typically be placed 4 inches from the top of the post. If you're using wood post sleeves on corners and gate posts, measure 4 inches down from the bottom edge of the post cap instead. This measurement keeps your top strand even across the fence line for a clean, uniform appearance.
Install Tensioners at Correct Height
Start by determining the number and spacing of strands. Once decided, install your tensioners first. The top tensioner should be placed 4 inches down from the top of the post. If using Safe-Fence post sleeves on corners or gates, measure 4 inches from the bottom of the cap.
Important: Drill a 1/8" pilot hole before attaching the lag screw to avoid cracking the post or the tensioner.

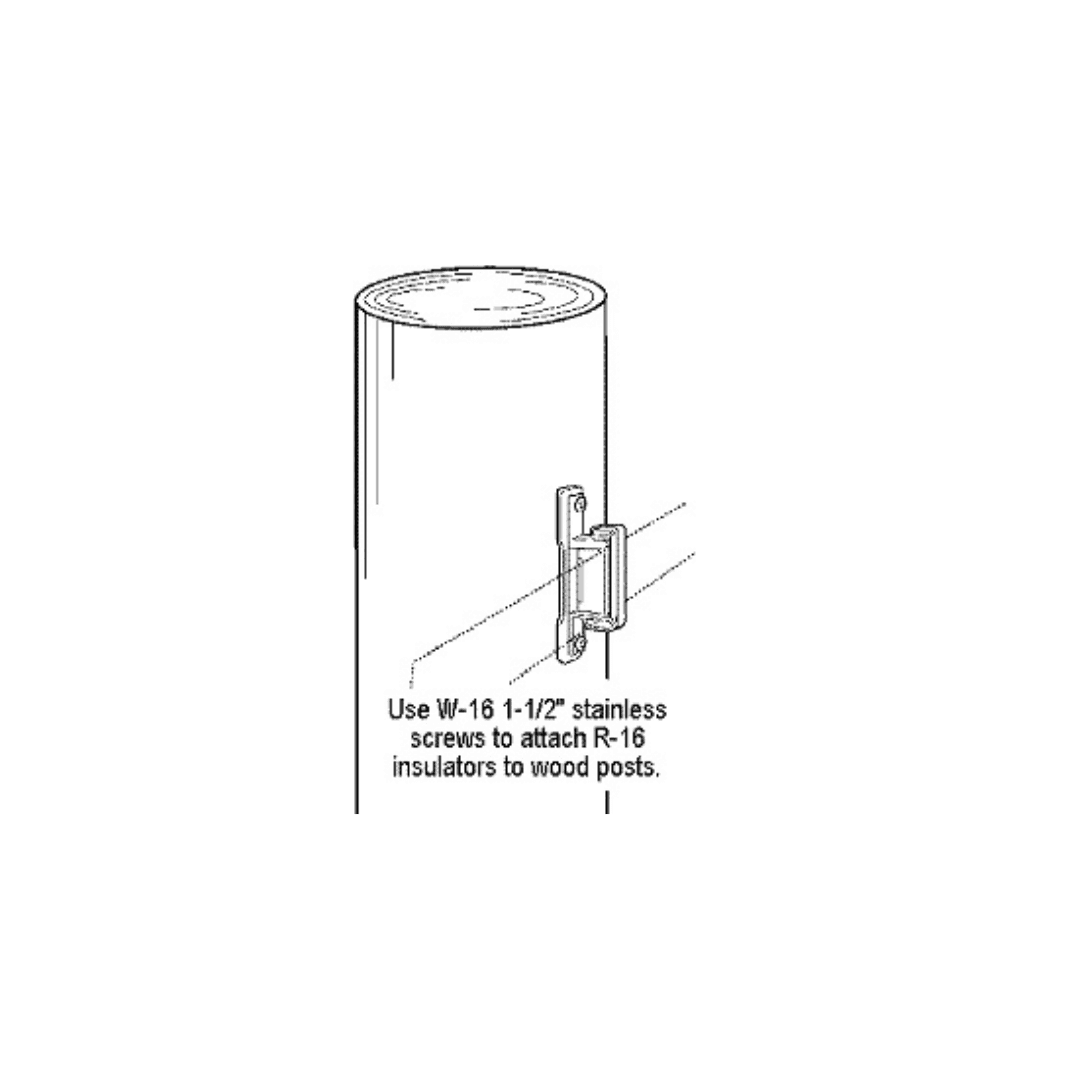

Installing R-16 Insulators on Wood Posts
Once tensioners are in place, mark your strand height and install the insulators. For wood posts, use R-16 insulators and fasten them securely with W-16 1½" stainless steel screws. Always align the insulators precisely to keep wire tension consistent across the line.
Installing R-16 Insulators on Safe-Tee Sleeves
For Safe-Tee Sleeves on T-posts, R-16 insulators should be mounted using S-16 ½" stainless steel screws. These keep the tape or wire insulated from the post and reduce the risk of voltage arcing. Confirm the spacing matches your strand plan before fully tightening.
Tips to Avoid Mistakes
- Always install tensioners before insulators.
- Don’t over-tighten lag screws — just snug.
- Pre-drill wooden posts to avoid splitting.
- Confirm level and consistent spacing before moving to the next post.
Final Thoughts
Properly installed tensioners and insulators are key to a strong, effective electric fence. Taking the time to follow these steps will ensure safe operation, consistent power delivery, and long-term performance. Whether you're new to fencing or upgrading an existing setup, precision during installation makes all the difference.
