Safe-Fence Tape Gates Installation: Step-by-Step Secure & Safe Guide
Installing a Safe-Fence tape gate correctly is essential for maintaining electrical continuity and the safety of your fence system. A poorly installed gate can compromise the function of the entire line, especially if it creates interruptions in the power flow. A well-installed gate will be “dead” (non-electrified) when open, allowing easy access through the fence without risk of shock.
This is especially important in high-traffic areas such as feeding zones, barn entrances, or rotational grazing gates. Whether you're managing horses, cattle, or other livestock, a properly designed and installed gate makes daily chores easier, safer, and more reliable.
Why Use Safe-Fence Polytape for Gates?

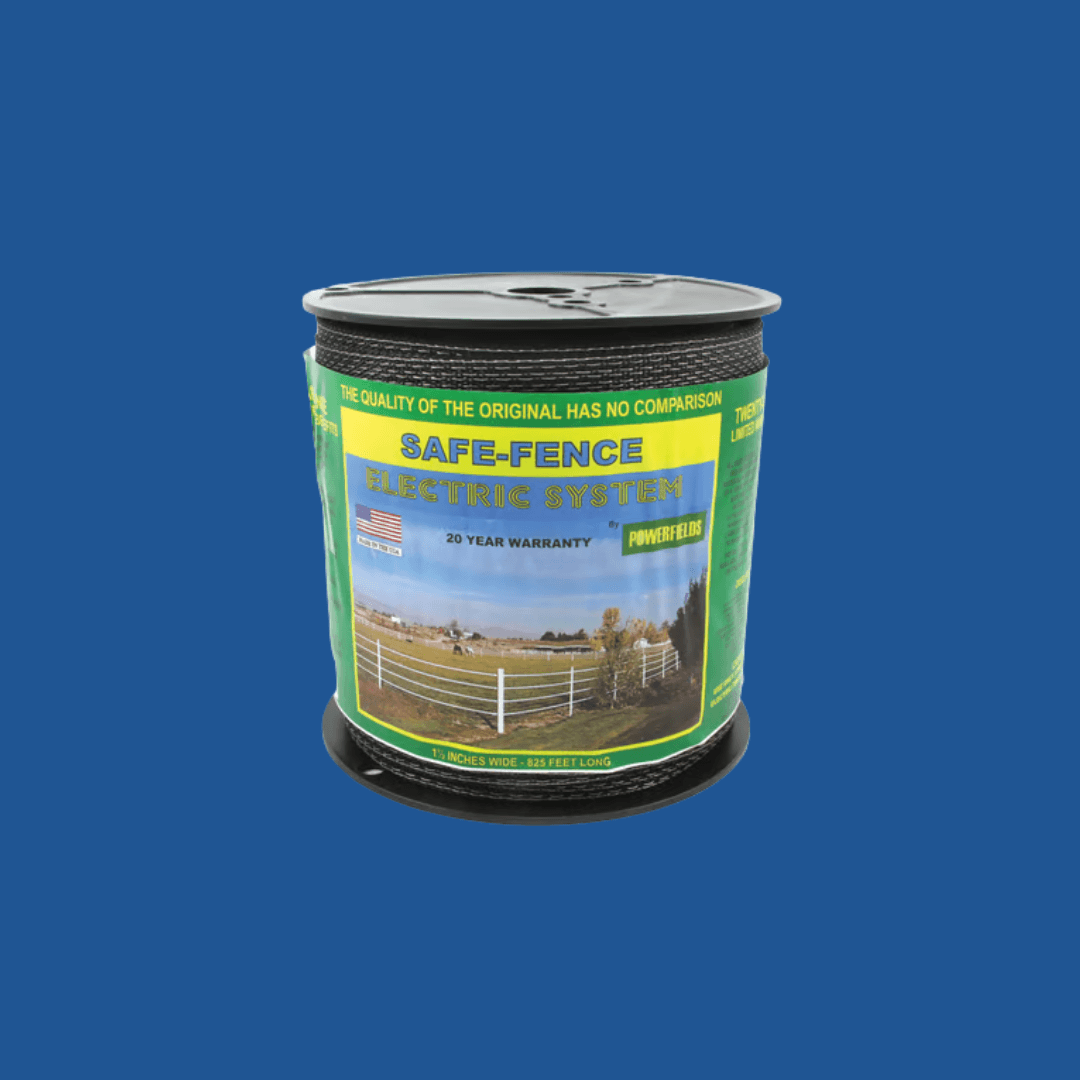

Safe-Fence Polytape is a top choice for electric gate construction due to its combination of visibility, flexibility, and strength. The wide, flat design makes it easy for animals to see, reducing the risk of accidental collisions and enhancing the effectiveness of your electric fencing system as a psychological barrier.
It’s made from durable materials that resist wear, UV damage, and harsh weather conditions, making it suitable for both permanent and temporary installations. When wired correctly to be inactive when open, Safe-Fence Polytape gates become a highly functional part of your fencing setup—helping to protect livestock and reduce handling stress.
Tools and Materials You’ll Need
Before starting your Safe-Fence gate installation, it’s important to prepare all the necessary components. Having the right tools on hand will save time and prevent delays once installation begins. Here’s what you’ll need:
- JR59 wire connectors – for secure and reliable connections to your tensioners
- Insulated cable – to safely carry power beneath the gate without interruption
- Top and bottom tensioners – used to maintain proper tension on each tape strand
- Plastic conduit or pipe – to protect insulated cable buried underground
- Standard fencing tools – including a cordless drill, wire cutters, screwdriver, and measuring tape
These items ensure your gate is properly integrated into your electric fencing system, helping you maintain safety and performance over time.
How to Install a Safe-Fence Tape Gate
To ensure the Safe-Fence gate operates effectively, follow this method for routing power across the gate:
-
Attach Insulated Cable to Top Tensioner: Start by connecting the insulated cable to the top Tensioner using a JR59 wire connector. This allows electricity to flow from one side of the gate to the other.
-
Route Cable Beneath the Gate: Run the cable down the post and under the gate. If the underground span is less than 1 foot, make sure the cable is protected with plastic pipe to prevent damage.
-
Connect on the Other Side: Bring the cable up the opposite post and connect it to the top Tensioner using another JR59 connector.
-
Connect Lower Strands (Optional): If your gate has multiple strands, continue routing the insulated cable down the post, connecting each strand from top to bottom. This keeps the lines powered and allows easy disconnection if needed.
By wiring the gate this way, the gate becomes inactive when opened, eliminating the risk of electric shock during routine use while maintaining full power when closed.
Final Tips
- Always turn off the energizer before installing or modifying any electrical connections.
- Use plastic conduit for any underground runs, even if they’re shallow.
- Test the voltage after installation to confirm all strands are hot when the gate is closed.
- Label the gate area clearly to remind others that the fence is electrified when shut.
A properly installed Safe-Fence tape gate improves the overall function and safety of your electric fence system. It ensures reliable power flow when closed and safe, convenient access when open. With the right tools and a few simple steps, you can set up a gate that performs well in both daily use and long-term operation.
