Volts vs. Joules: What’s the Difference in Electric Fencing?
When setting up or maintaining an electric fence, one of the most common questions is whether volts or joules matter more. Understanding the difference between the two is key to choosing the right energizer and ensuring effective livestock control.
While both play an important role, they serve different functions in how an electric fence performs. This guide breaks down the key distinctions and explains how each impacts the overall effectiveness of your fencing system.
Understanding Volts and Their Role in Electric Fencing
Does an animal receive more of a jolt per volt or per joule? This is difficult to test due to the lack of volunteers and the challenge of rating shock intensity. However, there are critical distinctions between volts and joules.

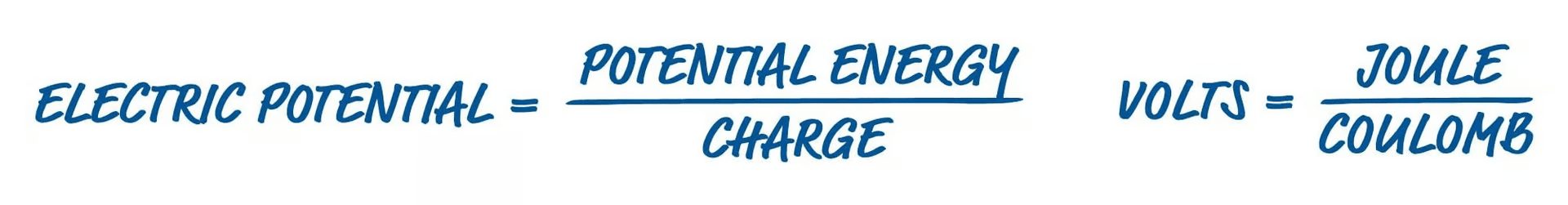

A volt is a unit of measure assigned to the electrical potential or voltage across a conductor. However a joule is a unit of energy or work done, to move an electric charge through an electric potential. The following are mathematical understandings of volts and joules, which later will be put into layman's terms according to choosing the correct energizer.
⚡ TL;DR: Just Want the Right Energizer?
Loading fence configurator...
The Importance of Voltage
To deliver an effective shock, a fence must maintain at least 3,000 volts. Voltage is responsible for carrying the electrical pulse through the animal’s skin or hide to the nerves. When the fence has a low load, minimal amperage is needed, so thin conductive materials like stainless-steel twine wires are sufficient.
Even a unit with just 0.10 output joules can be effective if voltage is maintained. Long-pulse energizers, often called “weed burners,” are not recommended because they can start fires or melt fence materials.
Recommended Minimum Voltage for Effective Shock: 3,000 volts
Animal-specific Recommendations:
- Horses: 2,500 volts-
- Cattle: 3,500 volts-
- Sheep/Goats/Heavy Haired Animals: 4,500 volts-
- Pigs: 5,000 volts-
- Predators/Deer: 5,000–10,000 volts-
- Pets: 3,000 volts
What Are Joules and Why Do They Matter?
Joules represent the energy needed to push voltage down the fence line and through vegetation or resistance. Think of joules as the “horsepower” moving the current. Fence length and construction type should dictate the required output joules.
A common rule of thumb is one output joule per mile of fence. While higher output is generally beneficial, excessive energy can lead to induction, which happens when voltage unintentionally powers nearby gates or neutral wires. This occurs if the energizer is too large for the system and creates an expanded electrical field that reaches unintended components.
Joules vs. Stored Joules
For fences with underground cables or heavy vegetation, a powerful charger paired with 12½-gauge wire is ideal. Materials like aluminum-clad, high-tensile steel offer excellent conductivity and durability for long lines under load.
It’s important to understand that output joules, not stored joules, determine fence performance. Many manufacturers list high stored joules, but what truly matters is how much energy reaches the fence after passing through the output transformer. Output joules typically equal about 70% of stored joules.
Additionally, voltage readings across resistance levels (such as 25 ohms) can be misleading because they don’t account for pulse duration. Capacitor size and voltage provide a better sense of stored power, but delivery efficiency still varies between units.

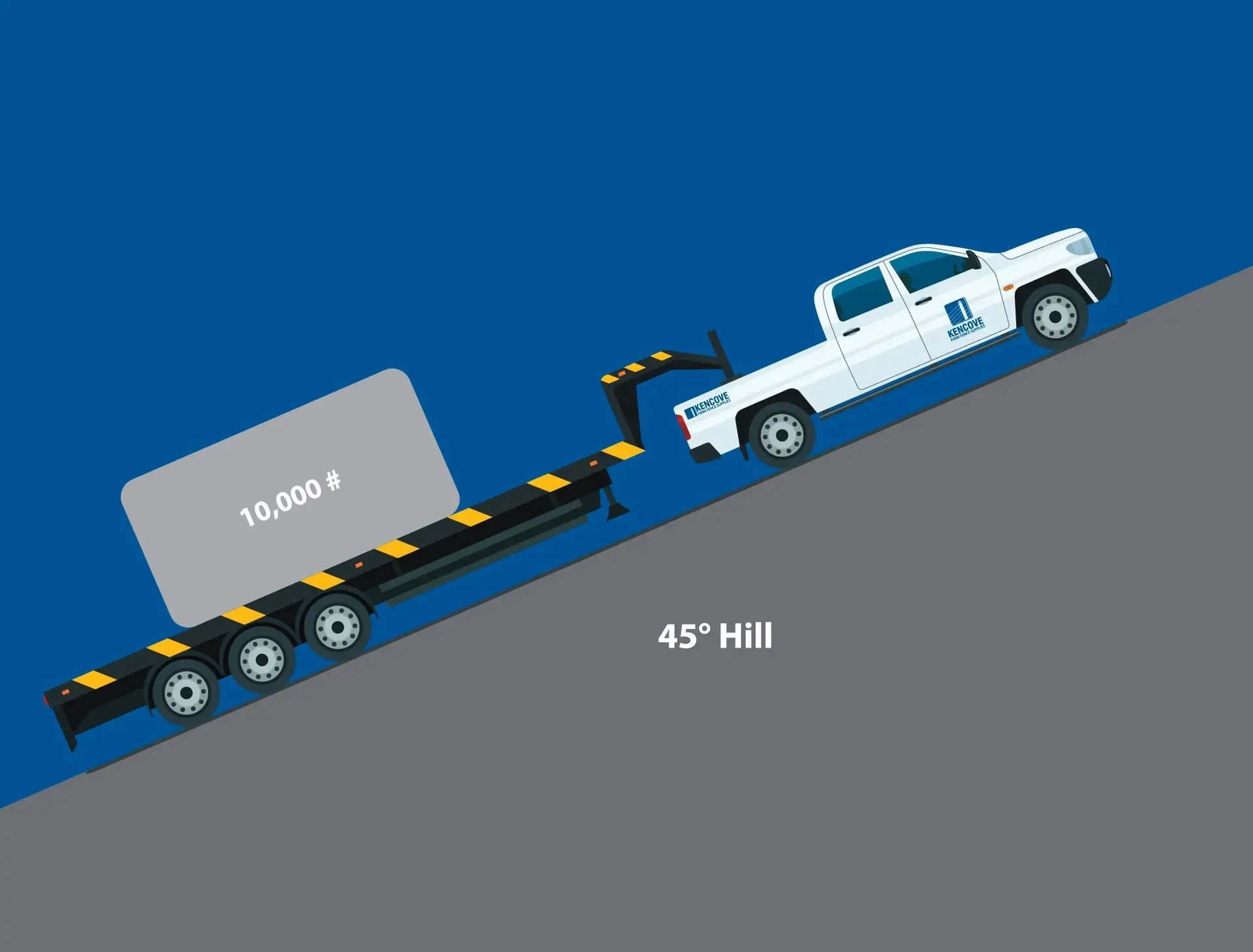

Explaining the Difference: The Truck Analogy
The difference between volts and joules can be simplified by remembering that joules are the energy used to create voltage on the fence line. Whereas, voltage is the speed at which the current is moving along the line. The diagram below is an excellent example of volts and joules.
Joule = Truck (the energy to move the load)
Voltage = Speed (how fast the energy moves)
Hill = Fence (resistance the energy must overcome)
Weight = Weed Load / Ohms / Resistance
If you choose a weak energizer for a large fence with a heavy weed load, it's like using a small truck to pull a heavy trailer up a steep hill — it's not going to make it. A larger truck (more joules) and better speed (voltage) can get the job done.
How Resistance Affects Electric Fence Output
As the resistance increases on your fence line, the voltage begins to drop—even if your energizer’s joule rating is high. This is why selecting an energizer that compensates for resistance is so important.
Common sources of resistance:
- Weed load
- Stray voltage bridging to neutral wires or gates
- Bad connections or multiple splices
- Broken insulators
- Rusty wires
- Wire type: Polywire, ribbon, high-tensile, etc.
Choosing the Right Energizer for Your Fence
When selecting an energizer, consider:
- Type of animals (e.g., goats need higher joules)
- Total fence length
- Resistance factors like weed load or poor grounding
- Wire type
Many energizers are rated by miles of fence, but this is misleading. For example, a "50-mile" unit assumes perfect conditions: a single wire, no vegetation, and excellent grounding. In reality, this rating is rarely achievable.
Kencove recommends: At least 6 joules for a 40-acre perimeter to maintain effective control.
Choosing the Right Fence Design for Safety and Strength
In some setups, a single 16-gauge high-tensile wire mounted on fiberglass rod posts (⅝" x 5' ends and ⅜" x 4' mixed with ⅝" line posts) is sufficient. However, multi-wire designs such as a 6-wire, 12½-gauge high-tensile fence with 25' post spacing offer both a psychological and physical barrier. The shock trains animals not to touch the fence, while the structure deters attempts to pass through.
This dual deterrent approach increases control, especially in perimeter fencing. Animals are less likely to challenge a setup that appears physically strong and delivers consistent shocks. Flexible construction that avoids overtightening also reduces stress on dips, ends, and corners. With wire prices ranging between $0.03 and $0.04 per foot, per strand, this setup remains cost-effective for those seeking peace of mind and long-lasting infrastructure.
Final Thoughts
In electric fencing, volts initiate the shock, while joules determine how far and effectively that energy travels. Both are essential to proper fence function. To choose the right system, consider total fence length, wire type, vegetation, and energy requirements.
Understanding the balance between volts and joules helps create a reliable, durable electric fence that safely contains livestock and performs efficiently.
