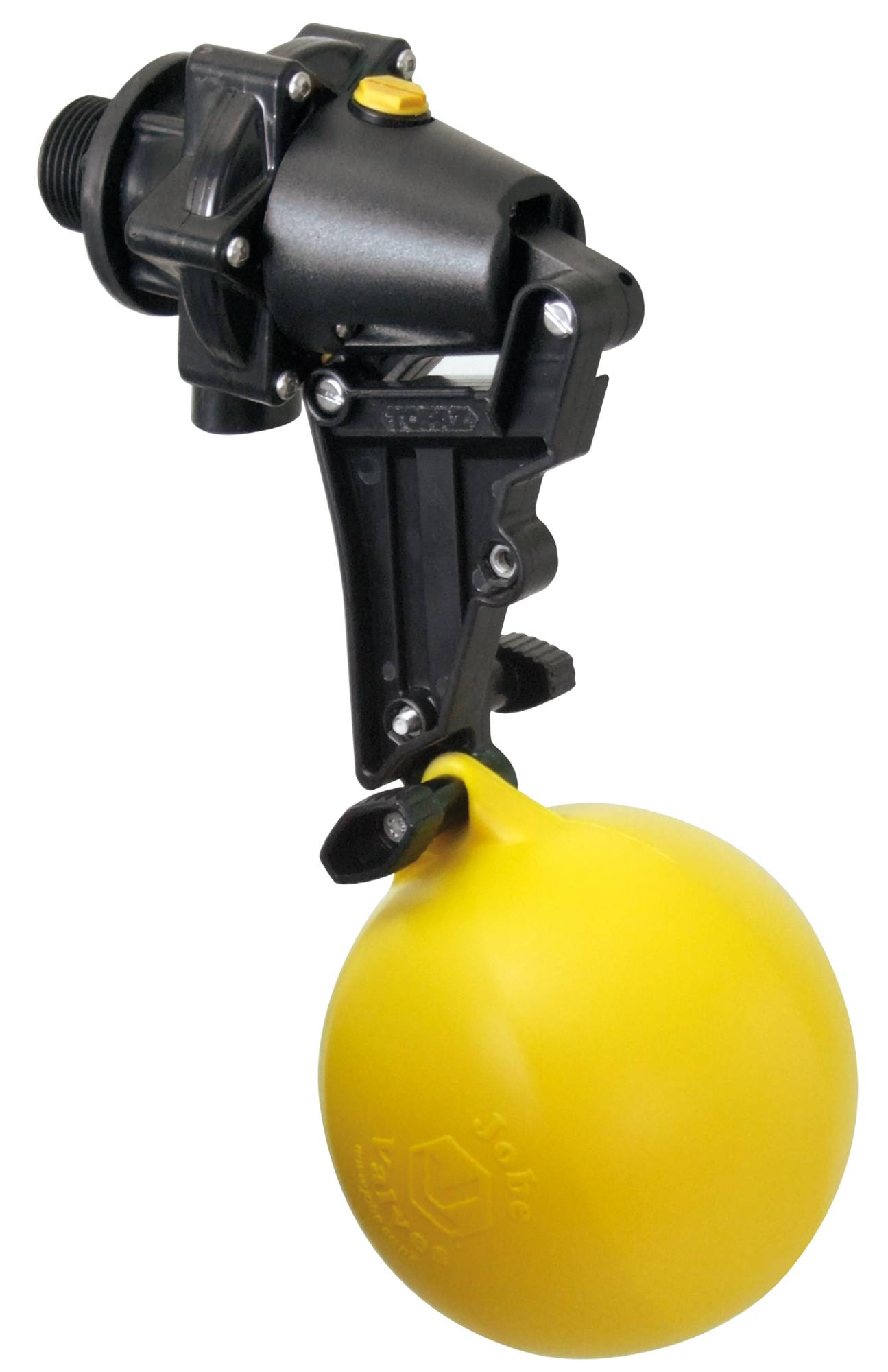

Jobe Topaz Trough Valve

★★★★★(2) | Weight: 1.45LB | Item# VJT

Topaz Valves are float-operated valves for use in automatic filling of water troughs, tanks, cisterns, etc. The valve is configured for above or below water mounting. The Topaz Valve is diaphragm-operated. Actuated by a pilot pin to create a 1-2 second positive on/off, over ¾"-2½" differential (varies with pressure) for a near hammerless operation. Topaz Valves are a good choice where their high flow, compact, robust, non-corrosive construction and high level of adaptability are needed.

• Mounting: side, bottom, or top
• Operating pressure range 5-100 PSI
• Max flow 55 GPM
• Wing bolt for easy float adjustment
• Isolate valve with lock-off switch
• Includes Detach System
• ¾" inlet
• Frost Pro (VJTFP) compatible for freezing conditions
• Use with Protect-A-Mount for protection from livestock (VJPM)
• ¼ turn removes valve to easily clean filter
• Long-tail model
