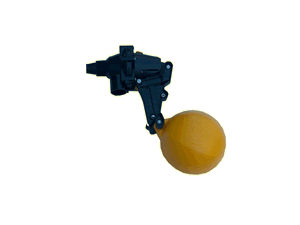

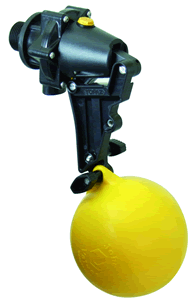

Jobe Topaz Trough Valve

(2) | Weight: 1.42LB | Item# VJT1.25

Topaz Trough Valves are a float-operated valves for use in automatic filling of water troughs, tanks, cisterns, etc. The valve is configured for above or below water mounting. The Topaz Valve is diaphragm-operated. Actuated by a pilot pin to create a 1-2 second positive on/off. Over ¾"-2½" differential (varies with pressure) for a near hammerless operation. Topaz Valves are a good choice where their high flow, compact, robust, non-corrosive construction and high level of adaptability are needed.

  • Mounting: side, bottom, or top
  • Operating pressure range: 5-100 PSI
  • Max flow: 90 GPM
  • Wing bolt for easy float adjustment
  • Isolate valve with lock-off switch
  • Includes detach system
  • 1¼" inlet
  • Frost Pro (VJTFP) compatible for freezing conditions
  • ¼ turn removes valve to easily clean filter
  • Long-tail model
$86.95
Shipping Status
FREE ShippingQualified orders over $150
Documentation

Product Manual
